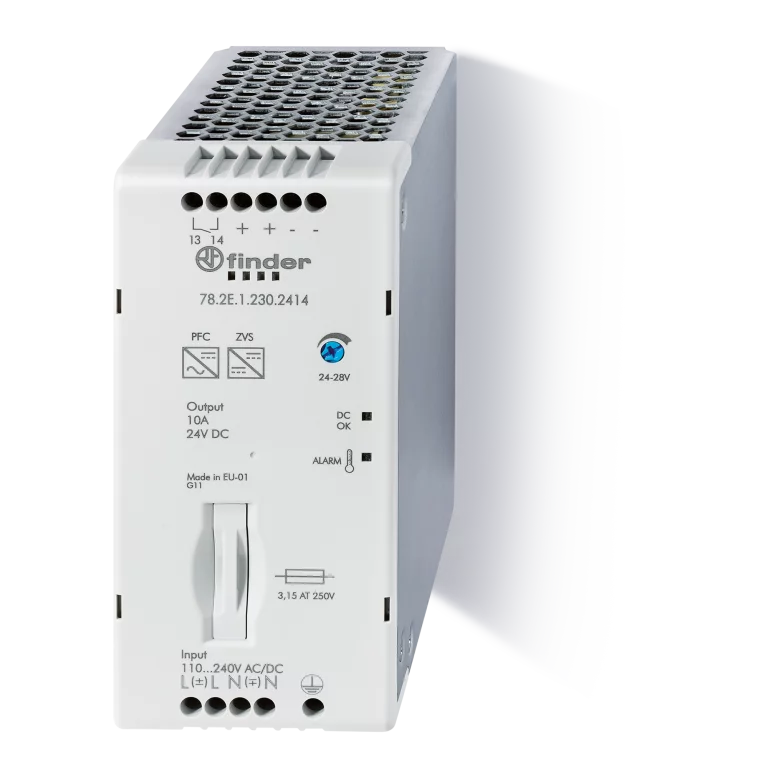

Type 78.2E - Switch mode power supply
- Brand: Finder
- Product Code: Type 78.2E
Description: Type 78.2E Switch mode power supply with 24 V DC, 240 W output, with output adjustable between 24 and 28 V and double stage conversion with PFC (Power Factor Correction).
With this type of power supply you can connect in parallel for increased output current.
Features include:
High efficiency (up to 93%)
Low consumption in stand-by
Forward circuit Type
Internal thermal protection with pre-alarm via LED plus auxiliary contact and output shutdown
Overload indication: with pre-alarm via LED plus auxiliary contact
Current boost without time limit, with LED indication plus auxiliary contact
Overload up to 20 A
Short circuit protection: Hiccup mode (automatic reset)
Input fuse: easily replaceable and equipped with a spare fuse
Overvoltage protection: Varistor
Compliant with EN 60950-1 and 61204-3
Parallel connection for higher load current (with OR diode)
Dual and serial connection
35 mm rail (EN 60715) mounting Type 78.2E
Description: Type 78.2E Switch mode power supply with 24 V DC, 240 W output, with output adjustable between 24 and 28 V and double stage conversion with PFC (Power Factor Correction).
With this type of power supply you can connect in parallel for increased output current.
Features include:
High efficiency (up to 93%)
Low consumption in stand-by
Forward circuit Type
Internal thermal protection with pre-alarm via LED plus auxiliary contact and output shutdown
Overload indication: with pre-alarm via LED plus auxiliary contact
Current boost without time limit, with LED indication plus auxiliary contact
Overload up to 20 A
Short circuit protection: Hiccup mode (automatic reset)
Input fuse: easily replaceable and equipped with a spare fuse
Overvoltage protection: Varistor
Compliant with EN 60950-1 and 61204-3
Parallel connection for higher load current (with OR diode)
Dual and serial connection
35 mm rail (EN 60715) mounting Type 78.2E
