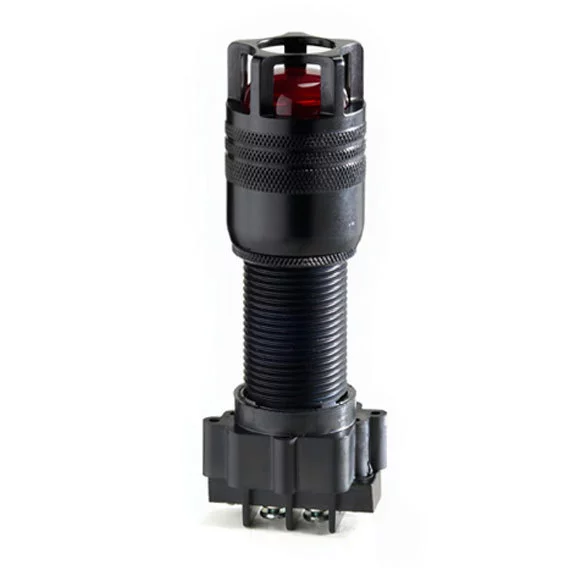

Guarded Pilot Lights

Standard Features
 �  • �  Explosionproof pilot lights are suitable for long barrel or short barrel applications.
 �  • �  Sealed construction and can be relamped from the front by removal of lens cap.
 �  • �  Made with 3/4” NPSM threads.
 �  • �  8” flexible leads, other lengths on special order, or screw terminal (suffix T).
 �  • �  All lens caps are black anodized aluminum finish.
 �  • �  Maximum installation thickness: 1 13/16” on Long Series, 5/8” on Short Series.
 �  • �  Standard Series-Equipped with candelabra base receptacles and 6 watt 120 volt 6S6 Clear 1500 hr. avg. lamps. Also vailable with

       � 6, 12, 24, 30, 50, 75 and 135 volt lamps. Specify voltage desired.
 �  • � Slide Base Series-Equipped with slide base receptacles and 120 volt 5000 hr. avg. lamps with slide base. Also available with 6, 12,

       � 24, 48 and 60 volt lamps. Specify voltage desired.
