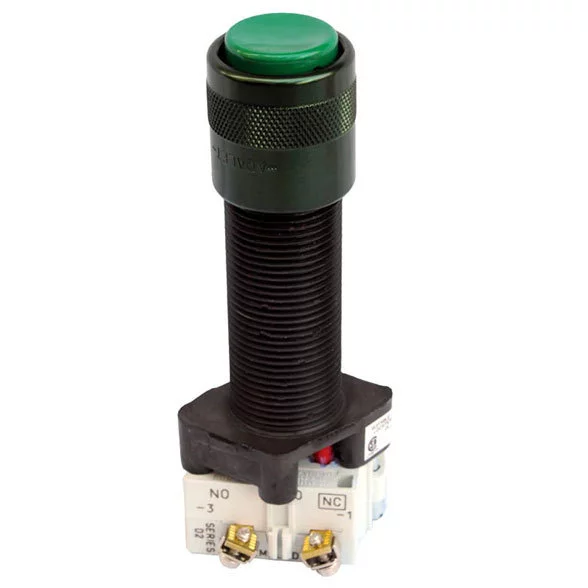

Explosion-proof & Dust-tight Push Buttons (non-illuminated)

Standard Features
 �  • �  All operators are die cast aluminum alloy. The barrels are all 3/4” NPSM thread. Maximum installation thickness 1 3/4” long barrel, 3/4” short barrel.
 �  • �  Black molded nylon buttons. The exposed metal parts are black anodized aluminum. For color coding we will furnish at no

       � additional cost the following color combinations: Red buttons with red metal caps and green buttons with green metal caps. Metal

       � caps are also available in blue, gold or clear with black buttons. Specify colors required.
 �  • �  Red Mushroom head buttons are 1 3/4” diameter anodized aluminum. Also available in black or green.
 �  • �  XHPBPL has padlock attachment on top of cap allowing operator to be locked with the push button depressed.
 �  •  � For use with BT contact blocks. Contact blocks can be stacked for multiple circuits. Contact blocks are not included with the operators.
 �  • �  XHPPM/XHPPMS require 2" minimum spacing.
 �  • �  XHPB pushbuttons are momentary.
 �  • �  XHPP pushbuttons are maintained.



NOTE: For extremely wet-dirty location applications, XHPB and XHPBS aeries are available to be used with protective boots.
