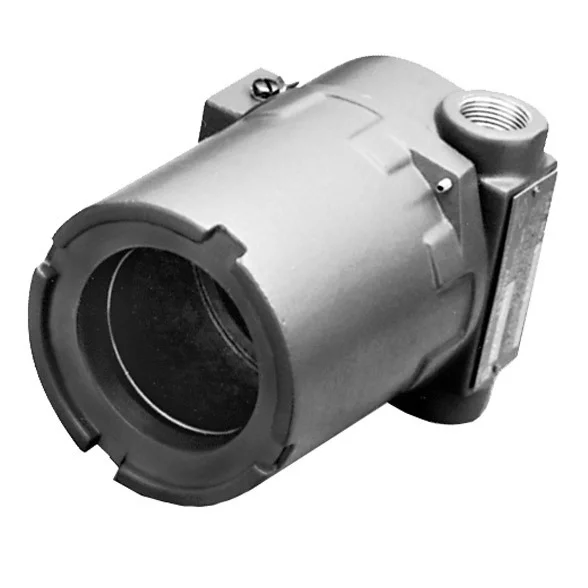

PRODUCT INFO
Standard Features
• ½” or ¾” NPT conduit feed-through hubs, offset for maximum clearance and capacity
• Four interior mounting bosses at 45° orientation accommodate blind tapped holes on a 2-1/2” bolt circle
• 60 chamfer on window opening provides exhanced viewing angle
• Internal and external ground screws and tamper resistant cover set screws for extra safety
• Choice of solid covers or 2-5/8” diameter tempered glass window for local read out or display
• Buna-Nitrile rubber gasket for NEMA Type 4X watertight applications
• Corrosion resistant, “safety blue” polyester powder coating (other colors available)
• Stainless steel hardwareDesign Options
• ¼”-20 UNC holes in front boss for bracket mounting• Front boss modifications: ½” or ¾” NPT & various NPSM & metric entries available in place of standard ½” NPT (consult factory)
• Mounting lugs with 5/16” holes (add suffix “L” to catalog number)
• Powder or epoxy coatings to match company color scheme
• Cast-on logos
• Custom drilling & tapping modifications
• Interior mounting bosses
• Custom designs and sizes
